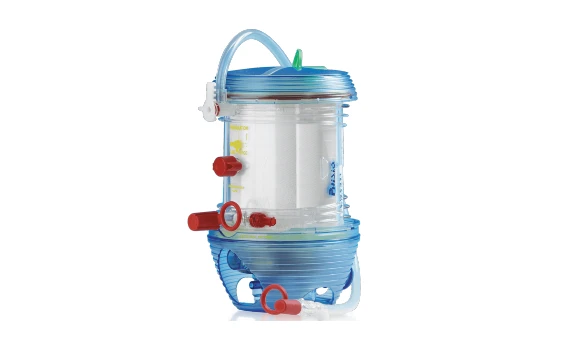

EOS ECMO
Plasma tight hollow fiber oxygenator
- EOS ECMO is by design a low priming volume oxygenator with a low membrane surface area, treated with P.H.I.S.I.O surface treatment.
- The EOS ECMO integrated heat exchanger maintains or restores normothermic blood temperature.
- The EOS ECMO purge line has an open pathway that allows continuous purging.
- LivaNova has designed a uniform biocompatible surface treatment that features phosphorylcholine (PC).
| Technical Features | |
|---|---|
| Recommended maximum blood flow (ml/min) | 5000 |
| Static priming volume (oxy module+HE) (ml) | 150 |
| Membrane surface area (sqm) | 1.2 |
| Membrane type | Hollow Fiber |
| Membrane material | Polymethylpentene |
| Heat exchanger surface area (sqm) | 0.14 |
| Heat exchanger material | Stainless Steel |
| Connections: - Venous inlet |
3/8” |
| - Arterial outlet | 3/8” |
| - Recirculation/Purge Line | 1/4” |
